How does a Ultrasonic Mist Maker work?

  YIWU LANHUI ultrasonic mist maker use high output ceramic discs, not the slow speed metal discs that collect buildup. The ceramic discs vibrate at an ultrasonic frequency to silently create microscopic (< 5 micron) water droplets. Ultrasonic humidifiers make a cool fog that is great for reptiles, greenhouses, and home humidification. LANHUI Mist Makers use a piezoelectric transducer for a high frequency mechanical oscillation just below the surface of the water. This vibration creates a very fine, very dry fog that is instantly evaporated into the air. Water foggers do not use dry ice, fog liquid, heat, chemicals.

  Usually it need 2 steps for making the mist maker work.

Step 1:Connect the mist maker head with our Specially made AC-DC adapter.Usually we have 2 types of voltage adapter.AC/DC24V adapter is for single head mist maker.And AC/DC48V is used for multi-head mist maker.Please don't mistake using it.

Step 2: Connect the adapter with your house AC220-240V power.Usually our adapter is suitable for AC220-240V,but in order to meet some part of client's AC110-120V voltage, we can also customize the adapter which is exchange AC110-120V to DC24V.So client should tell us your house using voltage before making an order!

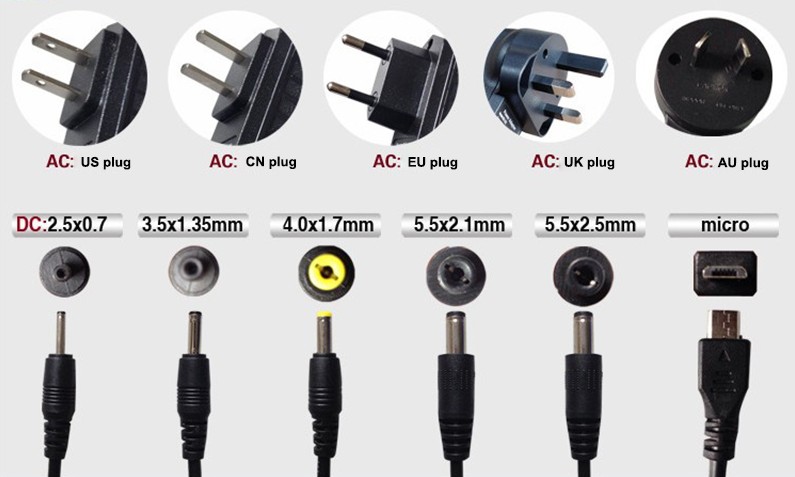

Besides ,Each countries using different adapter.Usually we sent clinet with EU two pin plug,While we can also customize as other plug like US ,UK,AU plug as below picture.

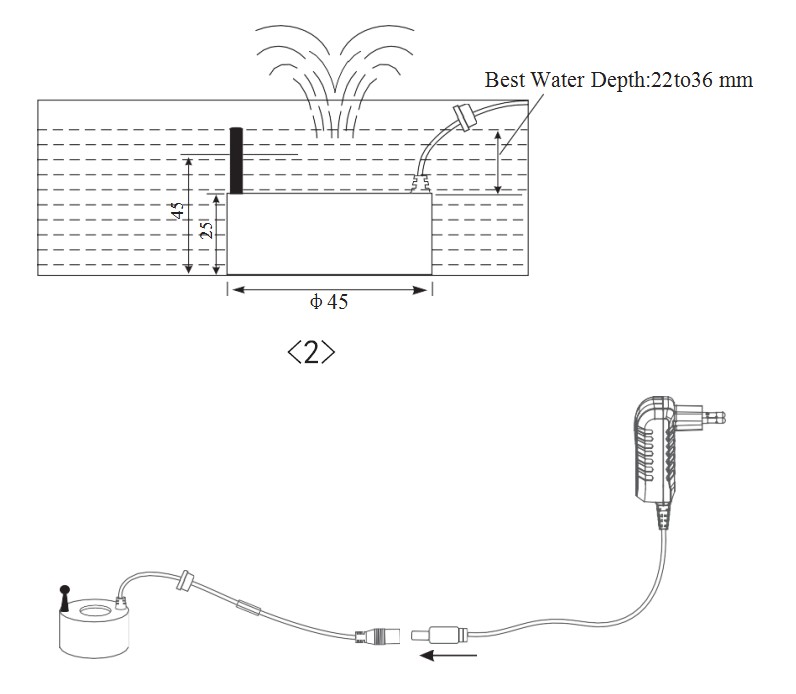

Step 3:Put the mist maker under the water,especially the water level sensor should below the water.The best working water leavel is under water 22 to 36mm.Please check the example photo below:

working diagram.JPG
